Application Environments: Applicable for the factories having the explosive mixtures formed from class IIA,IIB and IIC T1-T6 group flammable gas, steam with air in area No.1 , No.2, and appearing the explosive hazardous area due to the mixture of flammable dust and air in area No.20,No.21 and No.22,such as oil field, chemical plant, port, oil storage, steamship, oil drilling platform, gas stations, coal mine, aviation, military, medicine, steel, firecrackers production, machinery, food processing and storage and so on
. Integrate explosion-proof camera and infrared lamp with intelligent design,IR lamp turned on automatically when lack of visible light,IR CUT shifted day and night,high quality clear detailed vivid picture
. 1/2.8" Sony progressive scanning high-sensitivity CMOS sensor(1080P)(IP 2MP Camera)
WDR,high dynamic range ,control over automatic gain correction.
. Digital broad dynamic technology, backlight compensation,ultra low-light level,colour 0.02Lux@&F1.2,Black and White0.01Lux&F1.2
PoE power Supply
.HD-SDI signal output,support SMPTE292M,SMPTE424M standard
. Process the original signal through 3D digital noise reduction technology so as to make crisp, bright pictures at night
. Optics class toughened ultra-clear white explosion-proof glass,flux rate higher than 96%, completely eliminate infrared light halos.
. Optional temperature-controlled SCR semiconductor module to realize automatic heating and cooling functions
Certificate of Conformity (Electrical Apparatus for Explosive Atmospheres)
ExdⅡCT6 / DIP A20 TA,T6
DC12V(PoE power Supply)
1/2.8"IP Sony CMOS sensor
digital broad dynamic technology, backlight compensation
automatic,four times maximum
4mm/6mm/8mm/12mm,Varifocal (2.8-12mm) optional
WDR,high dynamic range ,control over automatic gain correction
ExdⅡCT6 / DIP A20 TA, T6
Camera Working current
Wiper power supply
220VAC / 24VAC, one of the factory support
When the heater (optional)
below -10 ° C ± 5 ° C
≤ 20W (with heating)
Material Stainless steel
304 or 316L
The window thickness

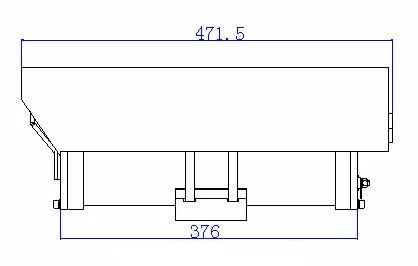

Overall dimensions: 471.5(L) * 194(H) * 195(W) (mm) Internal:270(L) x100(H) x 102(W) mm
Number of outlet holes
Outlet thread size
Eelectric PT head, semi-fixed head
IP68 Stainless Steel Self Clean Flame Explosion Proof CCTV camera Housing Enclosure With Wiper With Wiper Sunshield
Why Choose SafeEye ?
(1) 24 hours reply
(2)2 years Warranty
(3) 100% 5 steps Quality Check
(4) Powerful R&D team, OEM hardware and software
(5) fast leadtime: 3-4 days for sample order, 5-10 days for leadtime
The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
All the above products have CE ,FCC and ROHS certificates
Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
Power adapter isn't included in above prices, it's optional
Price Validity: 30 days from issuing date.
Warranty: 2 years after receiving goods,unlimited lifetime Technique support.
If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
What the Payment terms:
T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on. 1. We can arrange to produce in advance once we get the bank slip of deposit. 2. Order value less than 20,000USD, 100% payment before production; 3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment. Q.May I print our company logo on package box and products? A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo. Q.Do you provide warranty for your products? A:Yes,we promise two years warranty for all our products. Q.What is Minimum Order Quantity? A:Min Order Quantity is 10pcs,but sample order is welcome. Q: Can We to be your Agency in our Country? A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.
