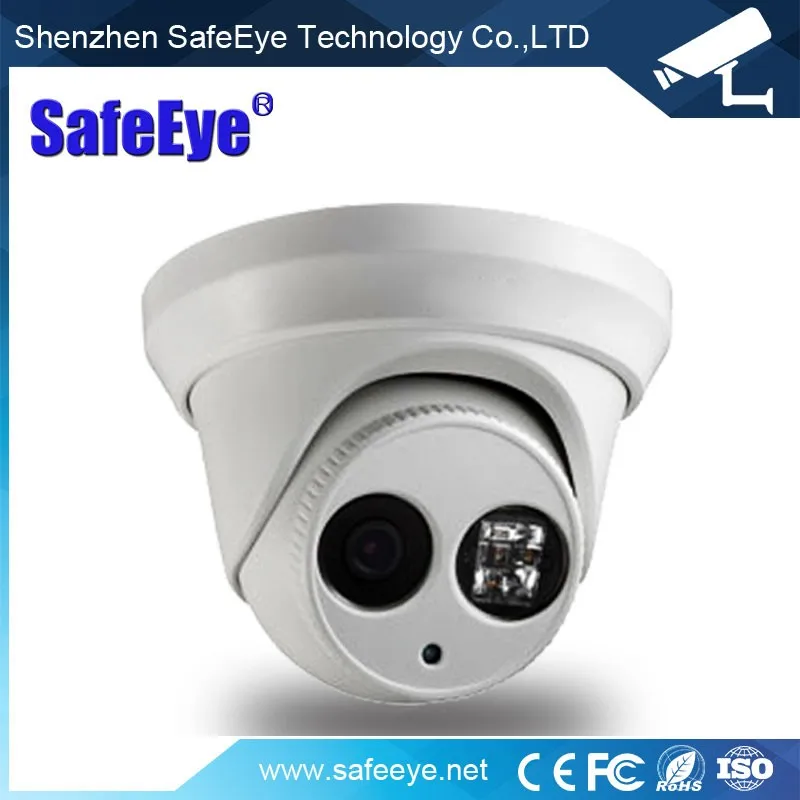

Quality Assured Top 10 CCTV 720P hd ir night vision 1mp dome indoor megapixel ir dome ahd Camera FCC,CE,ROHS Certification

FOB Reference Price:Get Latest Price
US $1-19 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
22000 Piece/Pieces per Month welcome to visit our factory
Port:
ShenZhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SafeEye or OEM
Model Number:
SA-603R
Type:
AHD Camera
Style:
Bullet Camera
Sensor:
CMOS
Technology:
Infrared
Special Features:
AHD Dome Camera
Lens:
3.6mm 3 megapixel lens
IR distance:
infrared array 40M
Material:
Metal shell
resolution:
720p, 1200TVL
1MP Image Sensor:
1/4" 1MP CMOS OV9712+Nextchip 2431H
Analog signal:
Support
DWDR:
Support
OSD:
Support
Packaging & Delivery
Packaging Details
Standard Safety Export Package / Carton (Box + Foam) or as customized
1pc in 1 PP bag or 25pcs/plate, 500pcs/ctn
Delivery Time
Shipped in 7 days after payment
Product Description
Quality Assured Top 10 CCTV 720P hd ir night vision 1mp dome indoor megapixel ir dome ahd Camera FCC,CE,ROHS Certification


AHD Introduction:
*What is AHD?
Analog High Definition
*What if AHD's features:
Coaxial transmission,super long range,convenience for users
*What is our AHD DVR advantages:
1,Switch AHD,IP and Anolog cameras in no time;
2,Coaxial line without modified;
3,Plug and play;
4,Strong compatibility;
5,Clear vision and lower price than CVI & SDI;

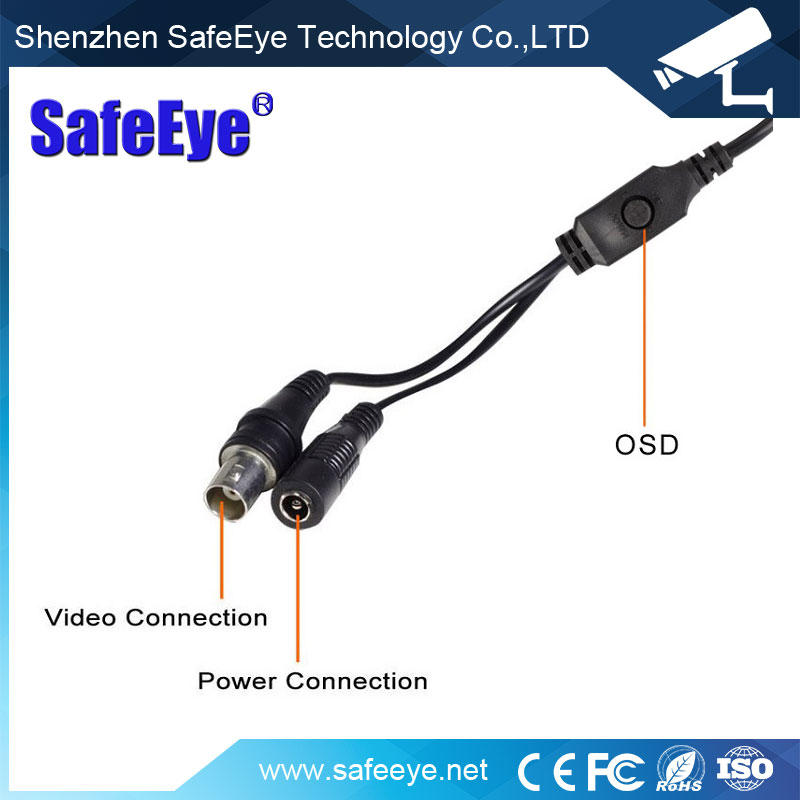

Top 10 CCTV 720P hd ir night vision 1mp dome indoor megapixel ir dome ahd Camera Detailed Images







Features:
1. Transmission distance (75-3 Coax@720P): over 500M
2. Support OSD menu, adjust image and function freely
3. Strong compatibility, automatic shift between AHD and CVBS analog signal
4. High Difinition, Low Cost
5. It can be compatible with normal 960H DVR
6. 1mp 720p and 1.3mp 2.0mp/ 960H optional


Sprcifications:
Model  NumberSA-603RSA-603R-p1SA-603R-P13SA-603R-P2SA-603R-P22

Imager

Sensor

1/4" 1MP CMOS 1/4" 1MP CMOS 1/3" 1.4MP CMOS1/3" 2MP CMOS 1/3" 2MP CMOS

OV9712+

Nextchip 2431H

AR0141+

Nextchip 2431H

 IMX225+

Nextchip 2431H

OV2710+

Nextchip 2441H

IMX322+

Nextchip 2441H

Effective

Pixels

                1280*8001280*1024               1920*1080
Resolution720P720P960P1080P1080P
FormatPAL/NTSC
IR cut filteryes
OSD MenuLens:Manual/ DC
Exposure: Shutter/AGC/Sense UP/Brightness/D-WDR/Defog
Backlight: OFF/BLC/HSBLC
White Balance: ATW/AWC-SET/Manual/AWB
Day&Night: EXT/Auto/Color/B&W
NR: 2DNR/3DNR
Speical: Cam Title/D-Effect/Motion/Privacy/Language/Defect/RS485
Adjust: Sharpness/Monitor/LSC/ Video.Out
IR LEDS36pcs  leds
IR Distance30m
Lens3.6mm 3MP lens
IlluminationColor: 0.1 lux/ F1.2Color: 0.01 lux/ F1.2Color: 0.01 lux/ F1.2Color:0.01 lux/ F1.2Color:0.001 lux/ F1.2
B/W: 0.01 lux / F1.2B/W: 0.01 lux / F1.2B/W: 0.01 lux / F1.2B/W: 0.01 lux / F1.2B/W: 0.001 lux / F1.2

Electronic

Shutter

Auto/1/50(1/60)~1/100,000s;
S/N>46dB(AGC OFF)

Video

Output

AHD Video

Transmission

Distance

Over 500m via 75-3 coaxial cable

Operate

Temperature

-20°C~50°C
Humidity<90%
