Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SafeEye
  • Model Number: S-TPT6200ZT
  • Type: IP and Analog integrated
  • Style: Bullet Camera
  • Sensor: Uncooled IRFPA Microbolometer
  • Technology: infrared thermal
  • Special Features: Waterproof / Weatherproof
  • Lens: F1.0, 08mm,15mm,25mm,35mm,50mm optional
  • Effective Resolution: 396x264
  • Spectral Range: 8 to 14μm
  • Pixel Pitch: 20μm
  • Sensitivity: 50mK
  • Temperature Response: 30ms
  • Temperature Detect Distance(Fire): 160m(8mm) / 300m(15mm) / 500m(25mm) / 1000m(35mm) / 1500m(50mm)
  • Power Supply: AC24V±10%
  • Product Weight: 12kg
  • Video Output: PAL/NTSC video output

Packaging & Delivery

Packaging Details Standard Safety Export Package / Carton (Box + Foam) or as customized
Delivery Time Shipped in 7 days after payment
Product Description

Common & Body Temperature  Detection Network Thermal   imaging camera Support solar power supply



Overview

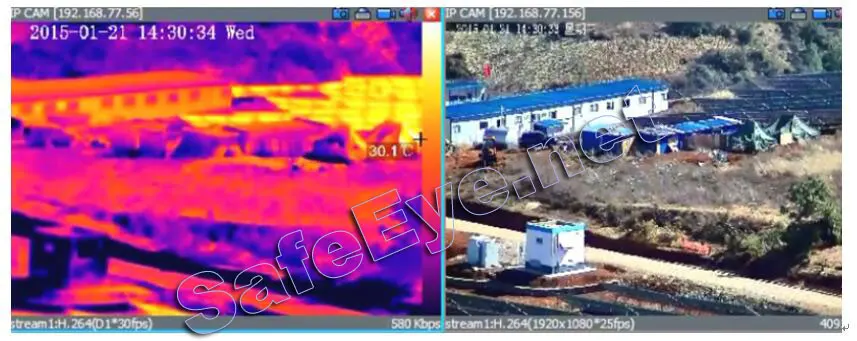

Any object as long as its temperature above absolute zero(-273.15℃), although not light,infrared radiation,but can also be called infrared heat radiation. Objects of different temperatures in the infrared radition is absorbed by the infrared detector,generating a temperature variation,resulting in electric effect, the electrical signal is amplified and then processed,the object is obtained with the surface of the heat distribution corresponding thermal image,that is”thermal imaging.”



The thermal camera suitable for a wide range of video surveillance applications, including public facilities,fire control,manufacturing industry,building diagnosis,renewable energy,ocean affair and etc.



Key Features

  • Uncooled IRFPA Microbolometer
  • Temperature detection
  • Effective resolution 396x264
  • Sensitivity 50Mk
  • 8/15/25/35/50 mm lens optional
  • Infrared detection wavelength 8-14um
  • Support 8 area temperature Detection
  • Support 17 Polarity Control
  • Support DVE image Enhance
  • Standalone Operating



Sprcifications:
CAMERA
Detector TypeLong-Life,Uncooled IRFPA Microbolometer
Effective Resolution396x264
Pixel Pitch20μm
Sensitivity50mK
Spectral Range8 to 14μm
Temperature Response30ms
Thermal Lens8mm,15mm,25mm,35mm,50mm, optional
Motorized 8mm,25mm,50mm
FocusManual/Motorized
FOV(Fixed Lens)43.6°×36.4°/24°×18°/14.6°×11°/10.5°×7.8°/7.3°×5.5°
Temperature Detect Distance(Fire)160m(Lens:8mm) / 300m(Lens:15mm) / 500m(Lens:25mm) / 1000m(Lens:35mm) / 1500m(Lens:50mm)
Fixed Lens Recognition Distance (Body)100/200/300/450/650m
Fixed Lens Recognition Distance(Vehicle)200/350/600/850/1200m
Motorized Lens Recognition Distance (Body)100/300/650m
Motorized Lens Recognition Distance (Vehicle)200/600/1200m
Video CompressionH.264 High/Main/Baseline Profile, MJPEG
Bit Rate (CBR/VBR)500kb~4Mb
Audio CompressionG.711 ,RAW_PCM,NONE
Thermal ResolutionD1/30fps
StreamD1/CIF
Image Color ModeBlack-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
DVE Image EnhanceYes
3D Noise ReduceYes
Image CorrectionAuto/Manual/External
Image OverturnHorizontal /Vertical /Horizontal+Vertical
NETWORK
Network ProtocolsIPv4/v6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPOE,SMTP,SIP
Alarm TriggerTemperature Alarm,MotionDetection,Networkdisconnect,Diskalarm,I/O alarm
RTSP VideoStandard RFC2326, Support QuickTime / VLC Player.
SecurityUser security authentication, Reset, Hardware WatchDog
Web LanguageEnglish, Chinese
System CompatibilityOnvif
INTERFACE
Ethernet1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio I/OOptional
Alarm I/OOptional
RS485Yes
BNC OutputYes
Reset ButtonYes(built in)
Edge StorageMicro SD/SDHC slot ,Max 32GB
GENERAL
Power SupplyAC24V±10%
Power Consumption30W
OperatingTemperature-25℃~+55℃
Ingress ProtectionIP66
ApprovalsCE / FCC
Product Dimensions345x202x445mm
Product Weight10kg


 Common & Body Temperature  Detection Network Thermal   imaging camera
