Long distance Temperature Detection explosion-proof infrared thermal imaging Camera

FOB Reference Price:Get Latest Price
US $2,000-30,000 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
20000 Piece/Pieces per Month welcome to visit our factory
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
IP and Analog integrated
Bullet Camera
Uncooled IRFPA Microbolometer
infrared thermal
Special Features:
Waterproof / Weatherproof
F1.0, 08mm,15mm,25mm,35mm,50mm optional
Effective Resolution:
Spectral Range:
8 to 14μm
Pixel Pitch:
Thermal Resolution:
Vision Resolution:
Temperature Detect Distance(Fire):
160m(8mm) / 300m(15mm) / 500m(25mm) / 1000m(35mm) / 1500m(50mm)
Power Supply:
DC9-DC36V ,AC24V optional
Product Weight:
Video Output:
PAL/NTSC video output
Packaging & Delivery
Packaging Details
Standard Safety Export Package / Carton (Box + Foam) or as customized
Delivery Time
Shipped in 7 days after payment
Video Description
Product Description

Long distance Temperature Detection explosion-proof infrared thermal imaging Camera



Any object as long as its temperature above absolute zero(-273.15℃), although not light,infrared radiation,but can also be called infrared heat radiation. Objects of different temperatures in the infrared radition is absorbed by the infrared detector,generating a temperature variation,resulting in electric effect, the electrical signal is amplified and then processed,the object is obtained with the surface of the heat distribution corresponding thermal image,that is”thermal imaging.”

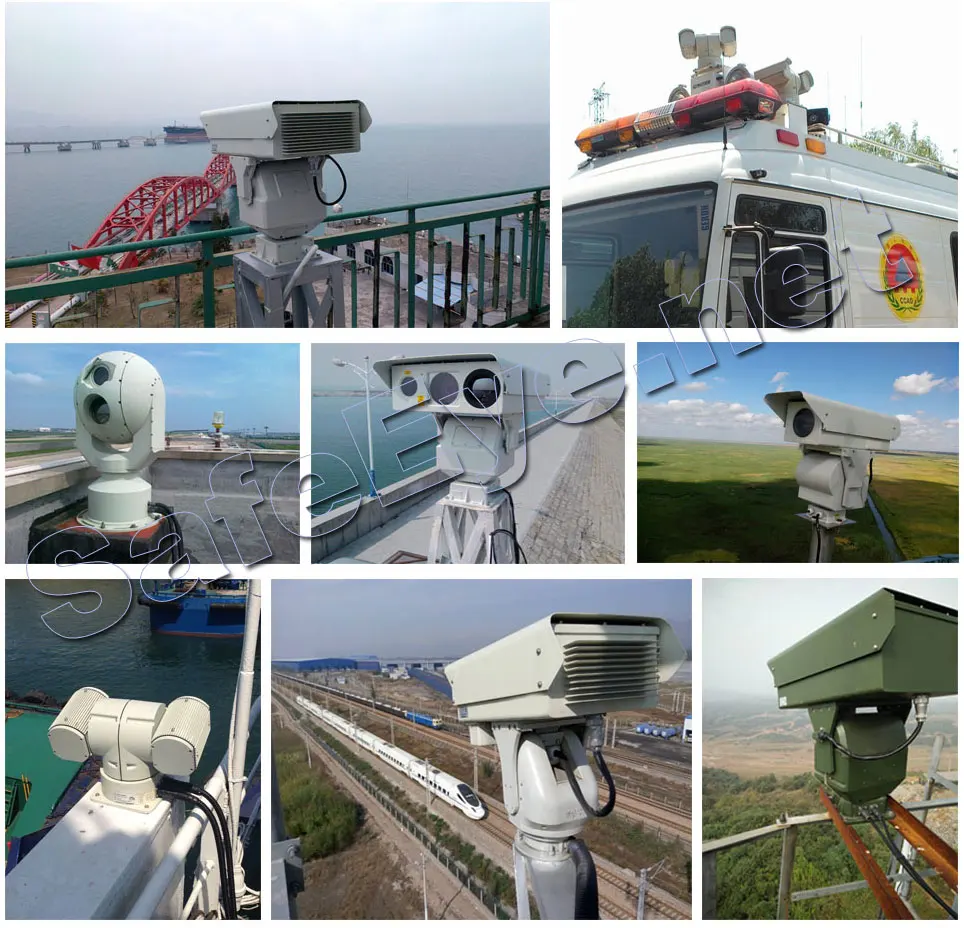

The thermal camera suitable for a wide range of video surveillance applications, including public facilities,fire control,manufacturing industry,building diagnosis,renewable energy,ocean affair and etc.


Key Features

  • Uncooled IRFPA Microbolometer
  • Temperature detection
  • Effective resolution 396x264
  • Sensitivity 50mK
  • 8 to 50 mm lens optional
  • Vision Optical Zoom 30X
  • Infrared detection wavelength 8-14um
  • Support 8 area temperature Detection
  • Support 17 Polarity Control
  • Support DVE image Enhance
  • Standalone Operating


Detector TypeLong-Life,Uncooled IRFPA Microbolometer
Effective Resolution396x264
Pixel Pitch20μm
Spectral Range8 to 14μm
Temperature Response30ms
Vision Lens30X Optical Zoom
Thermal LensF1.0,8mm,15mm,25mm,35mm,50mm optional
Motorized 8mm,25mm,50mm optional
FOV(Fixed Lens)14.6°×11°/10.5°×7.8°/7.3°×5.5°
Temperature Detect Distance(Fire)500m(Lens:25mm) / 1000m(Lens:35mm) / 1500(Lens:50mm)
Fixed Lens Recognition Distance (Body)300/450/650m
Fixed Lens Recognition Distance(Vehicle)600/850/1200m
Motorized Lens Recognition Distance (Body)100/300/650m
Motorized Lens Recognition Distance (Vehicle)200/600/1200m
Video CompressionH.264 High/Main/Baseline Profile, MJPEG
Bit Rate (CBR/VBR)500Kb-10Mb
Audio CompressionG.711 ,RAW_PCM,NONE
Thermal ResolutionD1/30fps
Vision Resolution1080P/30fps
Image Color ModeBlack-Heat /White-Heat/Rainbow/Iron-Red up to 17 modesYes
DVE Image EnhanceYes
3D Noise ReduceYes
Image CorrectionAuto/Manual/External
Image OverturnHorizontal /Vertical /Horizontal+Vertical
Alarm TriggerTemperature Alarm,MotionDetection,Networkdisconnect,Diskalarm,I/O alarm
RTSP VideoStandard RFC2326, Support QuickTime / VLC Player.
SecurityUser security authentication, Reset, Hardware WatchDog
Web LanguageEnglish, Chinese
System CompatibilityOnvif
Ethernet1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio I/OOptional
Alarm I/OOptional
BNC OutputYes
Reset ButtonYes(built-in)
Edge StorageMicro SD/SDHC slot ,Max 32GB
Power SupplyDC9-DC36V ,AC24V optional
Power Consumption30W(MAX)
Ingress ProtectionIP66
ApprovalsCE / FCC
Product Dimensions210x246x375mm
Product Weight15kg
Long distance Temperature Detection explosion-proof infrared thermal imaging Camera
Company Information

Why Choose SafeEye ?


(1) 24 hours reply


(2) 2 years Warranty


(3) 100% 5 steps Quality Check


(4) Powerful R&D team,  OEM hardware and software


(5) fast leadtime: 3-4 days for sample order, 5-10 days for leadtime


Our Services
  1.  The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
  2.  Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
  3.  Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
  4.  All the above products have CE ,FCC and ROHS certificates
  5.  Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
  6.  Power adapter isn't included in above prices, it's optional
  7.  Price Validity: 30 days from issuing date.
  8.  Warranty: 2 years after receiving goods,unlimited lifetime Technique support.
  9. If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange





Packaging & Shipping

1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.


2. Air freight (we have strong cooperation with DHL, TNT, FEDEX, EMS, you can also choose your own shipping forwarder)


  • DHL (3-7 business days)
  • FedEX (3-7 business days)
  • UPS (3-7 business days)
  • EMS (5-9 business days)
  • Air mail (7-25 business days)
  • The shipping way depends on your address.

What the Payment terms:

T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on.
1. We can arrange to produce in advance once we get the bank slip of deposit.
2. Order value less than 20,000USD, 100% payment before production;
3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment.
Q.May I print our company logo on package box and products?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is Minimum Order Quantity?
A:Min Order Quantity is 10pcs,but sample order is welcome.
Q: Can We to be your Agency in our Country?
A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.


  Click “send” to get the latest price list from us.
